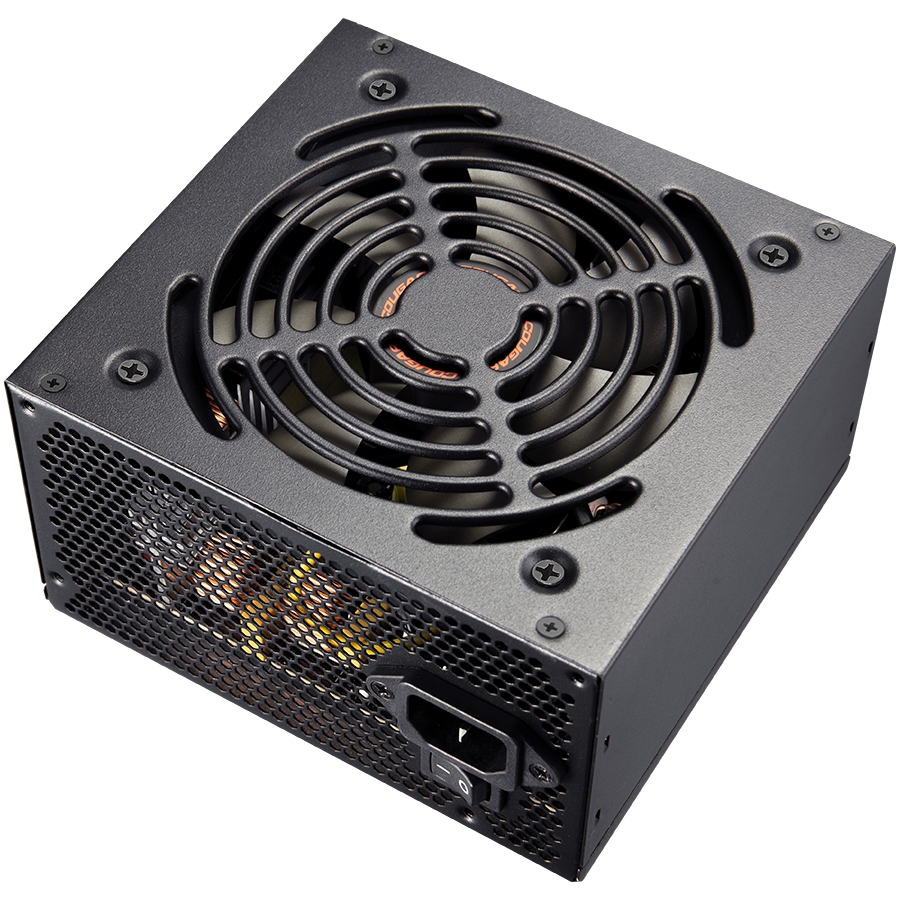

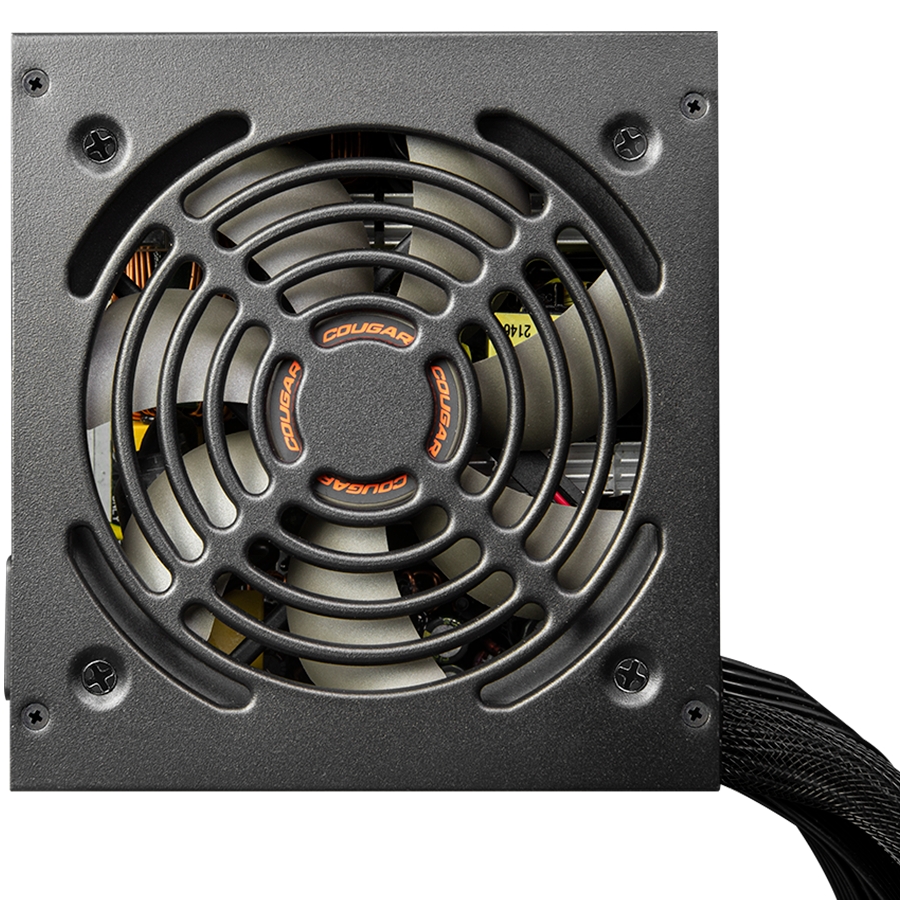

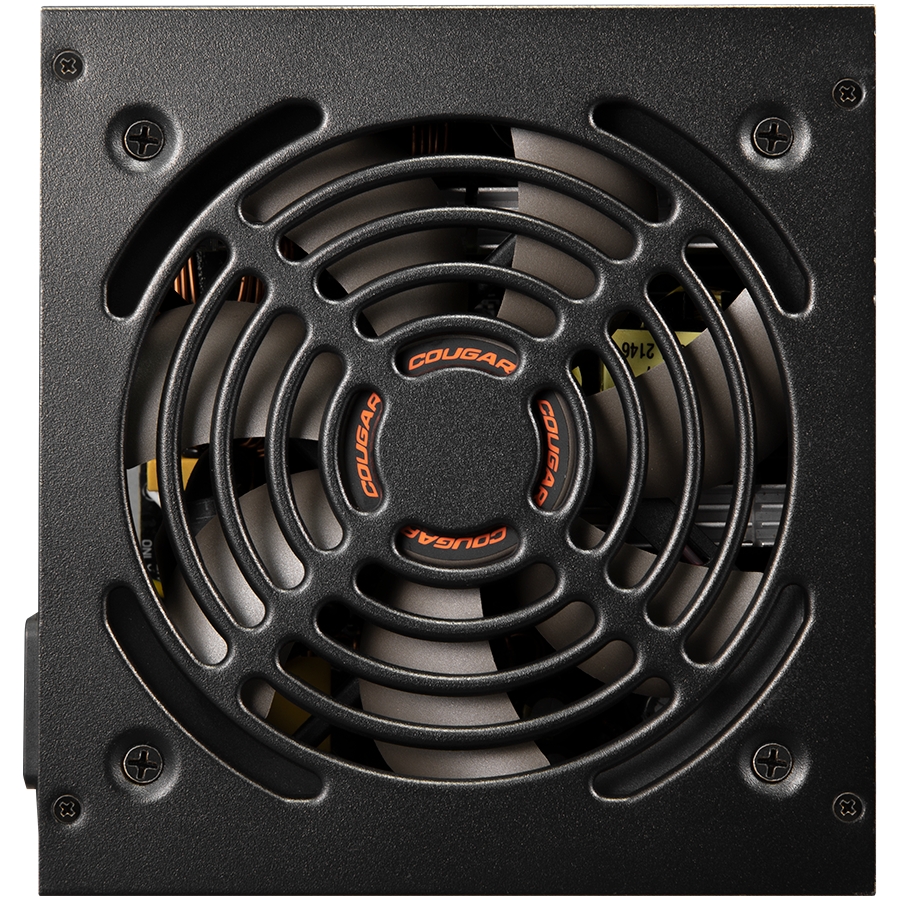

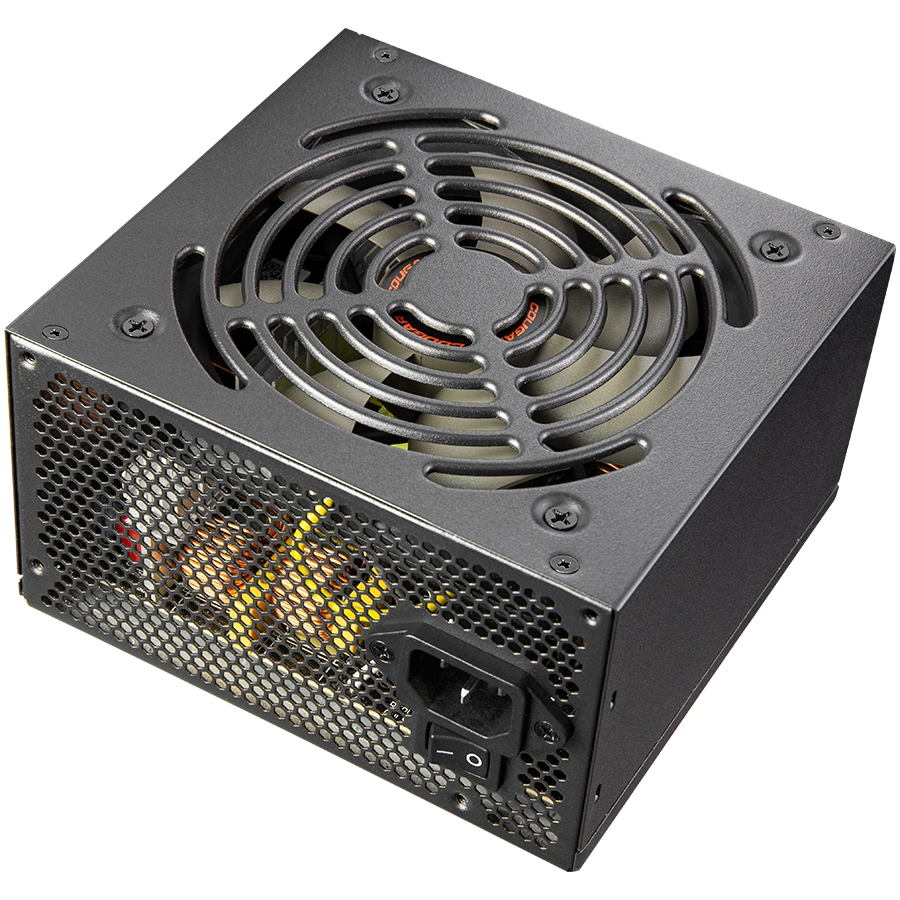

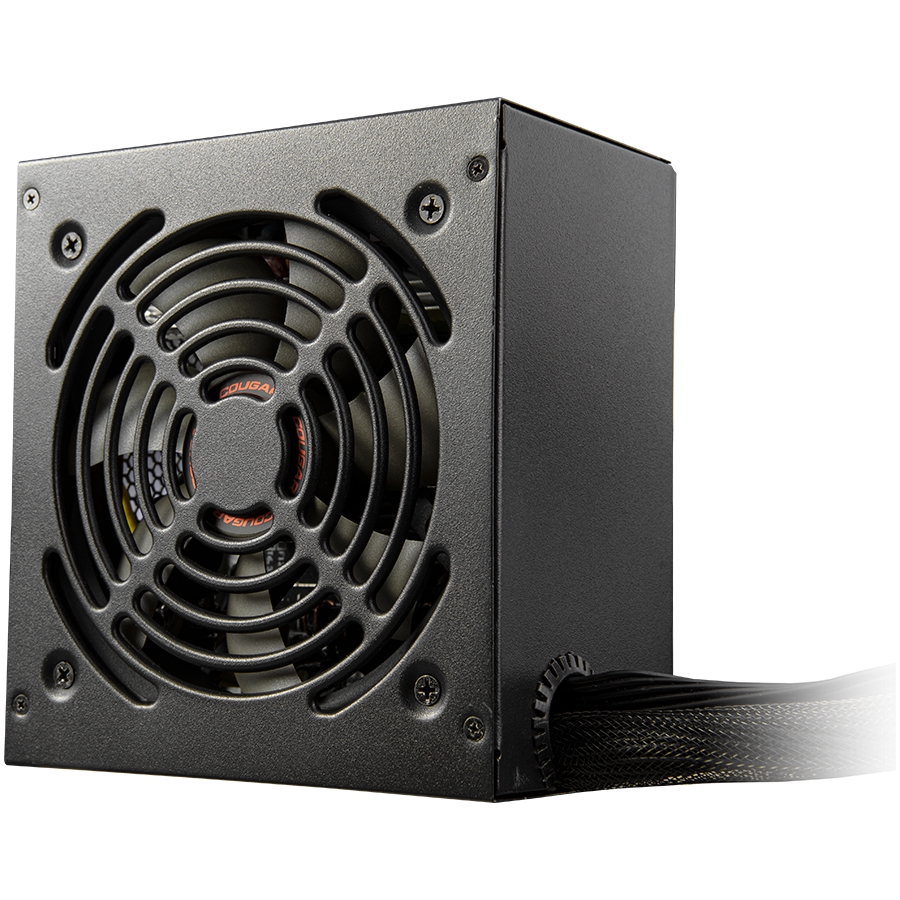

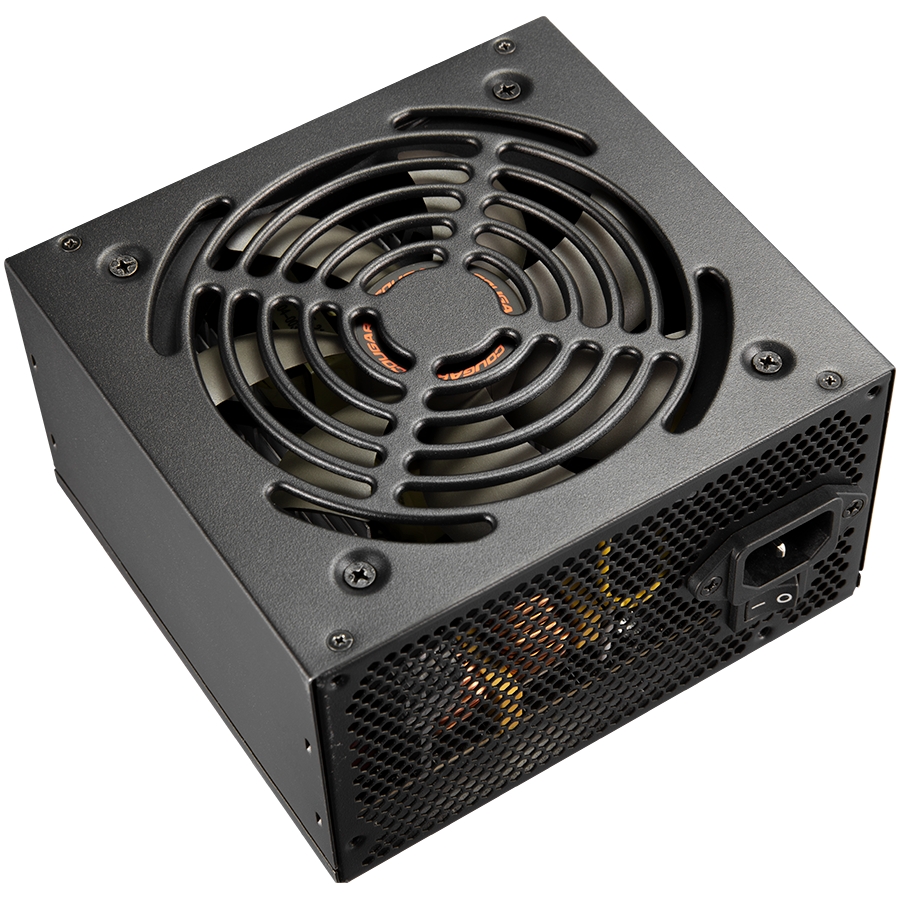

PC napajanje COUGAR ATLAS 650 PSU, 80 plus Bronze, 650W.
| Power Device Type | Power Supply |
| Power Device Location | Plug-in-module |
| Form Factor | ATX |
| Input Voltage | AC 100-240 V |
| Input Frequency | 50/60 Hz |
| Rated Input Current | 10 A |
| Maximum Output Power | 650 W |
| Circuit Protection | Over Voltage Undervoltage Over Current Short Circuit Protection Over Power |
| Power Adapter and Power Supply Features | Active PFC Low noise |
| 80 Plus Certification | 80 Plus Bronze |
| Efficiency | 89% |
| +3.3V | 20 A (65 W) |
| +5V | 20 A (65 W) |
| +12V | 54.16 A (649.92 W) |
| -12V | 0.3 A (3.6 W) |
| +5VSB | 3 A (15 W) |
| 20+4-pin Main Connector | 1 |
| 4/8-pin +12V Power Connector | 2 |
| 4-pin Peripheral Power Connector | 2 |
| S-ATA Connector | 6 |
| 6/8-pin PCI Express Connector | 2 |
| Fans Installed Quantity | 1 |
| Fan Diameter | 120 mm |
| Maximum Operating Ambient Temperature | 40 °C |
| Minimum Operating Ambient Temperature | 10 °C |
| Maximum Operating Humidity | 85 % |
| Minimum Operating Humidity | 20 % |
| Maximum Non-Operating Ambient Temperature | 70 °C |
| Minimum Non-Operating Ambient Temperature | -40 °C |
| Maximum Non-Operating Humidity | 95 % |
| Minimum Non-Operating Humidity | 5 % |
| External Color | Black |
| Included Accessories | Quick Start Guide |
| EAN Code | 4710483774874 |
