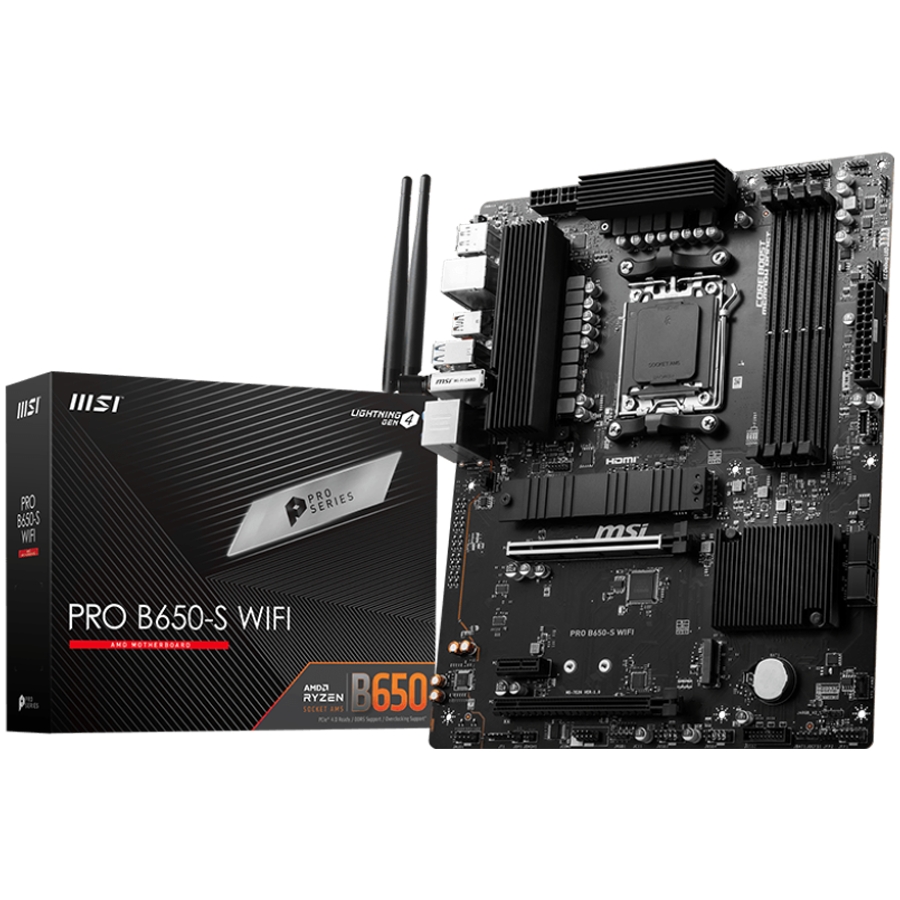

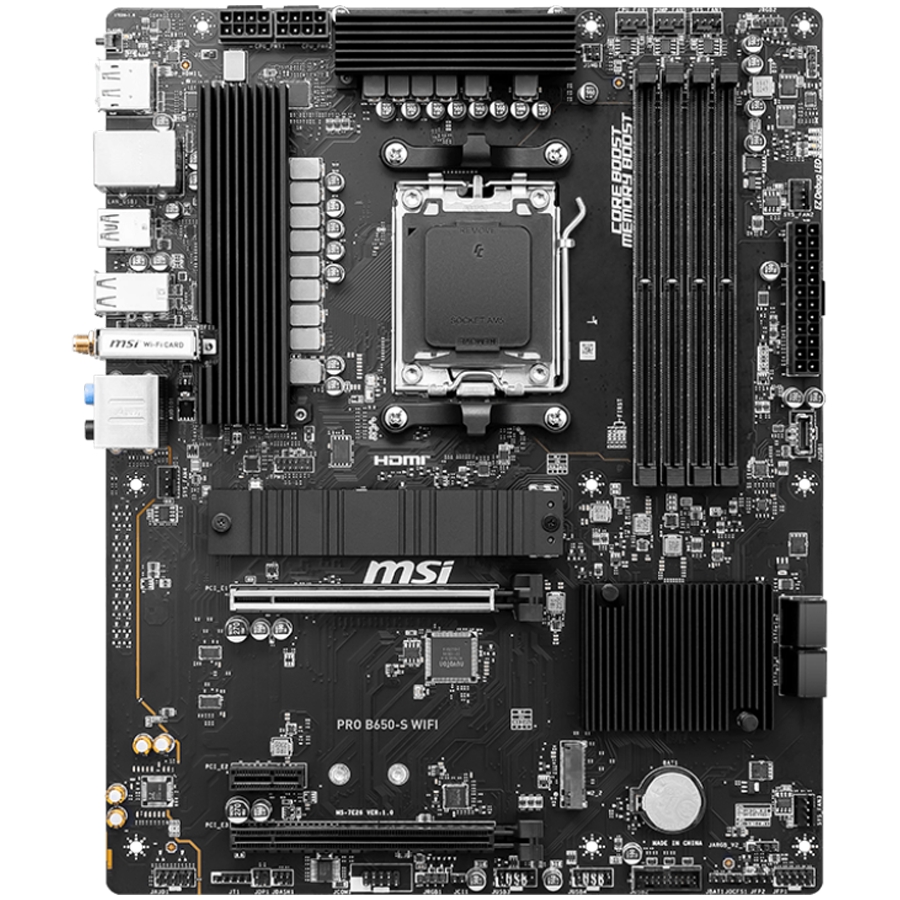

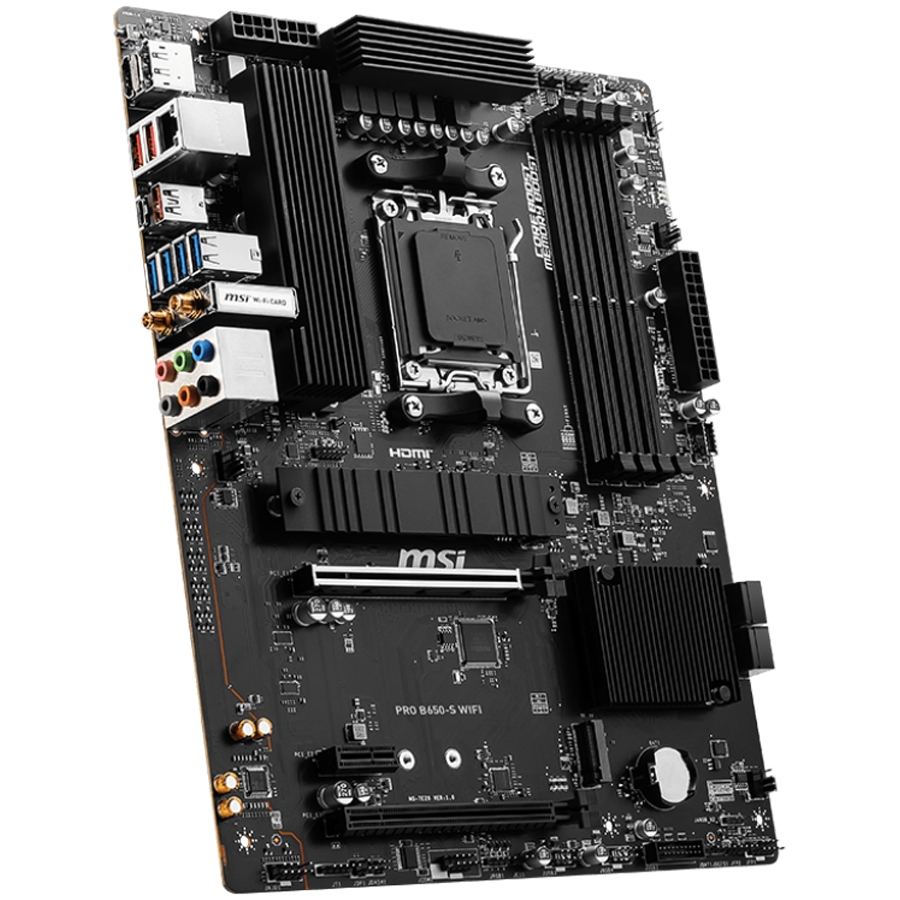

MSI PRO B650-S WIFI, AMD B650, AM5, DDR5, SATA3, PCIe 4.0, 2x M.2, 2.5GbE/ax WiFi 6E, USB 3.2 Gen2x2, ATX
| Chipset | AMD B650 |
| Supports Central Processor Unit | AMD Ryzen 7000 Series |
| CPU podnožje | Socket AM5 |
| CPU Maximum Quantity Supports | 1 |
| Vrsta memorije | DDR5 SDRAM |
| Memory Form Factor | DIMM 288-pin |
| Memory Speed | 7200MHz |
| Maximum Installable System Memory Storage Capacity | 192 GB |
| Memory Slot Total Quantity | 4 |
| Provides Error Checking Method | non-ECC |
| Memory Features | Two DDR Channels Unbuffered AMD EXPO |
| Integrated | Storage Controller: PCI Express 4.0 x4 (2 x M.2) Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (4) |
| Plug-in-card | Wi-Fi Controller: 1 x M.2 (Key E) |
| Audio Integrated | yes |
| Device Location | Integrated |
| Audio Chipset | Realtek ALC897 |
| Audio Output Mode | 7.1 Channel Surround |
| Compliant Audio Standards | High Definition Audio |
| LAN Integrated | yes |
| LAN Chipset | Realtek RTL8125BG |
| Wi-Fi | IEEE 802.11ax Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Data Link Protocol Supports | 2.5 Gbps |
| PCI Express x16 | 2 |
| PCI Express x1 | 1 |
| USB 3.2 Gen 2 | 3 (USB 3.2 (type A)) |
| USB 3.2 Gen 1 | 4 (USB 3.2 (type A)) |
| LAN | 1 (RJ-45) |
| Antenna | 2 |
| Audio Interface | 6 (3.5-mm minijack) |
| HDMI | 1 (HDMI (Type A)) |
| DisplayPort | 1 |
| USB 3.2 Gen 2 x2 | 1 (USB 3.2 (type A)) |
| Supported Operating System | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Cable Included | SATA Cable |
| Included Accessories | I/O Shield Quick Start Guide WiFi antenna |
| Form Factor | ATX |
| Height (mm) | 304.8 mm |
| Width (mm) | 243.84 mm |
| Brand | MSI |
