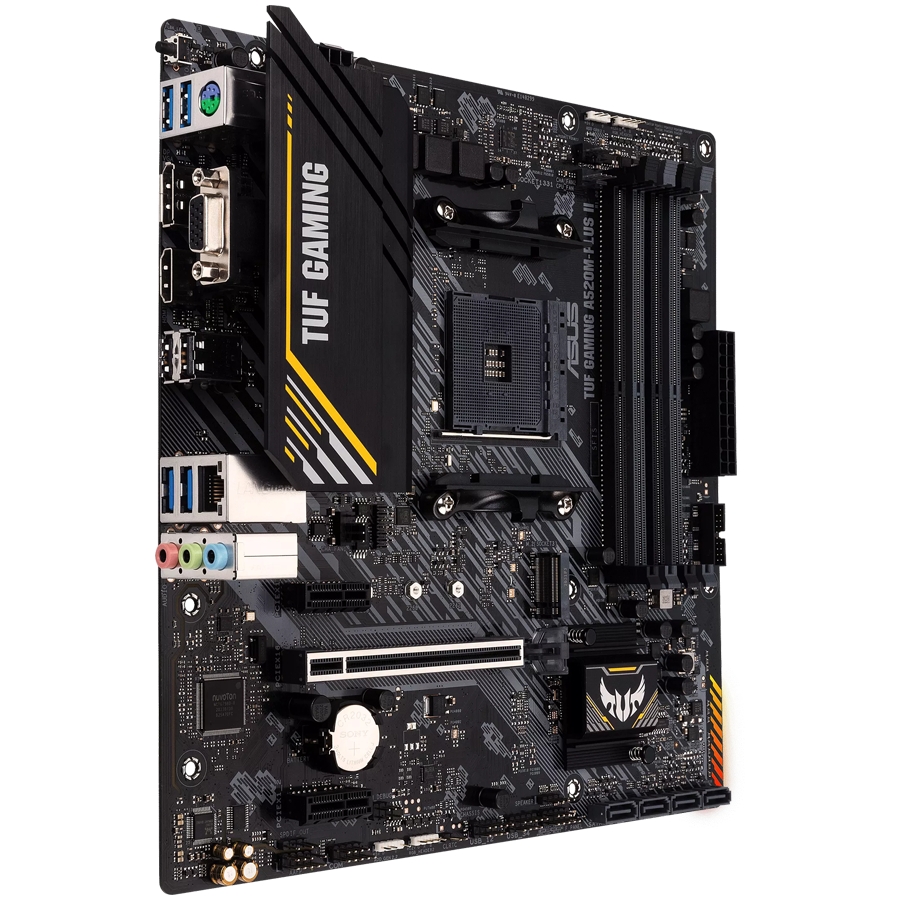

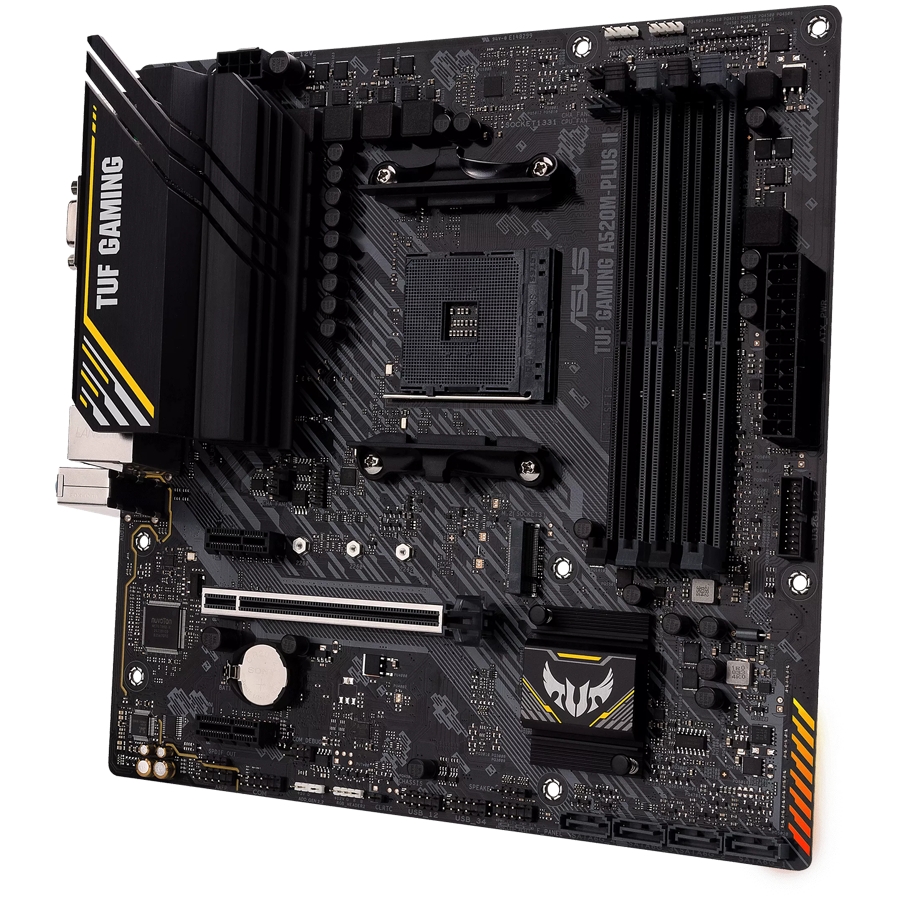

ASUS TUF GAMING A520M-PLUS II AM4 mATX MB – AMD A520 4xDIMM DDR4 1xM.2 4xSATA PCIe 3.0 1Gb Ethernet 1xD-SUB 1xDisplayPort 1xHDMI and AURA Addressable Gen 2 headers
| Chipset | AMD A520 |
| CPU podrška | AMD Ryzen Series |
| CPU podnožje | Socket AM4 |
| CPU Max. količina | 1 |
| Vrsta memorije | DDR4 SDRAM |
| Format memorije | DIMM 288-pin |
| Brzina memorije | 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 3000MHz(PC4-24000) 3200MHz(PC4-25600) |
| Max. kapacitet memorije | 128 GB |
| Količina utora | 4 |
| Provjera pogrešaka | ECC |
| Značajke memorije | Two DDR Channels Unbuffered |
| Integrirano | Storage Controller: PCIe 3.0 x4/SATA (1 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (4) |
| Integrirani audio | Da |
| Lokacija | Integrirano |
| Audio Chipset | Realtek ALC887/ALC897 |
| Širina audio podataka | 24-bit |
| Način rada audio izlaza | 7.1 Channel Surround |
| Audio standard | High Definition Audio |
| Integrirani LAN | Da |
| Podržana brzina | Gigabit Ethernet/Fast Ethernet/Ethernet |
| PCI Express 3.0 x16 | 1 |
| PCI Express 3.0 x1 | 2 |
| DisplayPort | 1 |
| VGA | 1 (15-pin D-sub) |
| HDMI | 1 (HDMI (Type A)) |
| LAN | 1 (RJ-45) |
| PS/2 | 1 |
| Audio izlaz | 3 (3.5-mm minijack) |
| USB 3.2 Gen 1 | 4 (USB 3.2 (type A)) |
| USB 2.0 | 2 (USB 2.0 (type A)) |
| BIOS vrsta | AMI |
| BIOS | ASUS CrashFree BIOS 3 UEFI PXE boot 128 Mb Flash ROM ASUS EZ Flash 3 |
| Wake up/Sleep | Wake on LAN |
| Power Connectors Type | 24+8 pin |
| Podržani operativni sustavi | Microsoft Windows 10 64-bit |
| Cable Included | 2 x SATA 6Gb/s Cables |
| Dodaci | I/O Shield User Guide Screws DVD Sticker |
| Format | Micro ATX |
| EAN kod | 4711081154457 |
| Brand | Asus |
