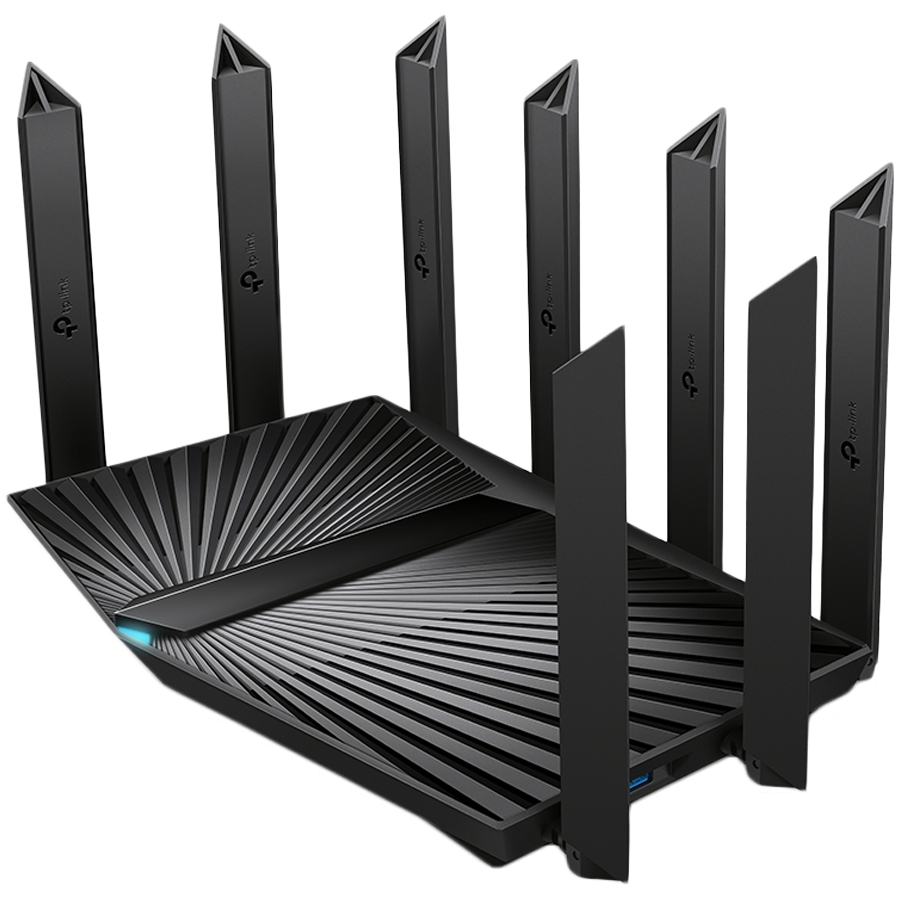

TP-Link Archer AX95 AX7800 Tri-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 4804 Mbps at 5 GHz_1 + 2402 Mbps at 5 GHz_2, 8× Antennas, 1.7 GHz Quad- Core CPU, 1× 2.5 Gbps WAN/LAN Port +1× 1 G WAN/LAN Port+ 3× G LAN Ports, 1xUSB 3.0 Port, 1xUSB 2.0 Port
| Network Device Type | Router/Range Extender/Access Point |
| Data Link Protocol Supports (New) | Wi-Fi + LAN |
| CPU Core Quantity | 4 |
| Internal Clock Rate | 1.7 GHz |
| WAN | up to 2.5 Gbps RJ-45 up to 1 Gbps RJ-45 |
| Wireless Networking | IEEE 802.11ax/ac/n/a 5 GHz, up to 4804 Mbps IEEE 802.11ax/n/b/g 2.4 GHz, up to 574 Mbps |
| Encryption Algorithm | WPA WPA2 WPA3 |
| LAN | 3 x 10Base-T/100Base-TX/1000Base-T up to 1 Gbps |
| Line Modulation Type | OFDMA |
| Supported Networking Compliant Standards | IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.1x IEEE 802.11n Wi-Fi 4 IEEE 802.11ac Wi-Fi 5 IEEE 802.11ax Wi-Fi 6 |
| Protocols (OSI Model) | PPPoE IPv4 IPv6 IGMP L2TP PPTP |
| Application Layer | DHCP FTP DDNS UPnP |
| Firewall Functions and Protocols | SPI (Stateful Packet Inspection) DMZ Support MAC address filtering DoS Attack Protection |
| Router Features | Access Point Tri-Band Beamforming Technology 4×4 MIMO 4T4R Mode Airtime Fairness High-Power FEM DFS Access Control |
| Antenna | External |
| Wireless LAN Antenna Quantity | 8 |
| Device Location | External |
| Certifications | FCC, CE, RoHS |
| Built-in Devices | Power Button Reset Button WPS Button |
| Included Accessories | Power Adapter Quick Start Guide |
| Cable Included | LAN Cable |
| LAN/WAN | 2 (RJ-45) |
| LAN | 3 (RJ-45) |
| USB 3.0 | 1 (USB 3.0 (Type A)) |
| USB 2.0 | 1 (USB 2.0 (type A)) |
| Power Device Location | External |
